Schema PNRViewRS.xsd


attribute Time
type restriction of xsd:string
used by
elements  TicketByDate TicketNumber
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

element AccountingLine
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber LinkCode VendorText ChargeCode ReceiptNumber OriginalReceiptNumber Commission BaseAmount TaxAmount TaxSurcharge TotalAmount FareApplication Payment NumberOfDocuments Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
Type derived by: xsd:string required      OTH

attribute AccountingLine/@Type
type restriction of xsd:string
properties
isRef  0
fixed  OTH
use  required
facets
minLength  3
maxLength  3

element AccountingLine/OriginalReceiptNumber
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element AccountingLine/TotalAmount
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element Action
diagram
type restriction of xsd:string
properties
content  simple
used by
element  Ticketing
facets
enumeration  TL
enumeration  TI
enumeration  TN

element ActionCode
diagram
type xsd:string
properties
content  simple
used by
elements  AirTaxiSegment BusSegment CarData CarPassiveSegment ChaufferBusDriveSegment HotelPassiveSegment Insurance InsuranceSegment LandSegment MCOSegment Open OtherSegment Passive PTASegment RailSegment Rooms SeaSegment SpecialServiceRequest TourSegment TVLSegment

element AdditionalInformation
diagram
type xsd:string
properties
content  simple
used by
element  SupplementalInformation

element Address
diagram
type xsd:string
properties
content  simple
used by
elements  AddressGroup HotelInformation

element AddressGroup
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber OptionalCompanyName OptionalName Address City PostalCode StateCode CountryCode Country AddressText ServiceElementNumber
used by
element  BillingAndDeliveryData
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
Use derived by: xsd:string optional

attribute AddressGroup/@Use
type restriction of xsd:string
properties
isRef  0
use  optional
facets
length  1
enumeration  B
enumeration  D
enumeration  A
enumeration  H
enumeration  O
enumeration  M
enumeration  T

element AddressGroup/ElementNumber
diagram
type extension of xsd:string
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
TattooNumber xsd:string optional
TattooQualifier xsd:string optional

attribute AddressGroup/ElementNumber/@TattooNumber
type xsd:string
properties
isRef  0
use  optional

attribute AddressGroup/ElementNumber/@TattooQualifier
type xsd:string
properties
isRef  0
use  optional

element AddressGroup/OptionalCompanyName
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element AddressText
diagram
type xsd:string
properties
content  simple
used by
elements  AddressGroup AssociateInformation

element AdvanceDeparture
diagram
type extension of xsd:string
properties
content  complex
used by
element  AdvanceTicketing
attributes
Name   Type   Use   Default   Fixed
Unit derived by: xsd:string    H
Permitted derived by: xsd:string required

attribute AdvanceDeparture/@Unit
type restriction of xsd:string
properties
isRef  0
default  H
facets
minLength  1
maxLength  1
enumeration  H
enumeration  D
enumeration  M

attribute AdvanceDeparture/@Permitted
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  L
enumeration  E
enumeration  O

element AdvancePurchase
diagram
type extension of xsd:string
properties
content  complex
used by
element  FareRules
attributes
Name   Type   Use   Default   Fixed
Unit derived by: xsd:string    D
Permitted derived by: xsd:string required

attribute AdvancePurchase/@Unit
type restriction of xsd:string
properties
isRef  0
default  D
facets
minLength  1
maxLength  1
enumeration  H
enumeration  D
enumeration  M

attribute AdvancePurchase/@Permitted
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  L
enumeration  E
enumeration  O

element AdvanceReservation
diagram
type extension of xsd:string
properties
content  complex
used by
element  AdvanceTicketing
attributes
Name   Type   Use   Default   Fixed
Unit derived by: xsd:string    H
Permitted derived by: xsd:string required

attribute AdvanceReservation/@Unit
type restriction of xsd:string
properties
isRef  0
default  H
facets
minLength  1
maxLength  1
enumeration  H
enumeration  D
enumeration  M

attribute AdvanceReservation/@Permitted
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  L
enumeration  E
enumeration  O

element AdvanceTicketing
diagram
properties
content  complex
children AdvanceReservation AdvanceDeparture
used by
element  FareRules

element Age
diagram
type xsd:positiveInteger
properties
content  simple
used by
element  TravelerName

element AgeInMonths
diagram
type restriction of xsd:integer
properties
content  simple
used by
element  Infant
facets
minInclusive  0
maxInclusive  23
pattern  [0-2]?[0-9]

element Agency
diagram
type xsd:string
properties
content  simple
used by
element  Ownership

element AgencyData
diagram
properties
content  complex
children SignOn DutyCode IATA
used by
element  PNRIdentification

element AgentName
diagram
type xsd:string
properties
content  simple
used by
element  OtherInformation

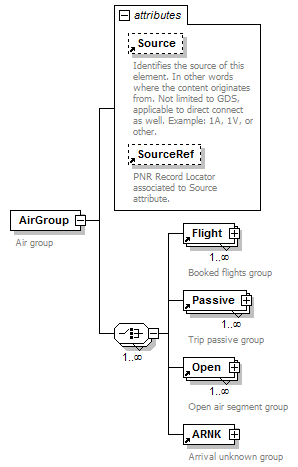

element AirGroup
diagram
properties
content  complex
children Flight Passive Open ARNK
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element AirlineCode
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  Carrier Flight/CheckIn FareInfo FlightArrival OperatingCarrier OtherServiceInformation SpecialServiceRequest PNRViewRS/ValidatingCarrier FareGroup/ValidatingCarrier

element AirlineName
diagram
type xsd:string
properties
content  simple
used by
elements  Carrier Flight/CheckIn FlightArrival OperatingCarrier OtherServiceInformation SpecialServiceRequest

element AirportCode
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  Arrival Tax/CollectionPoint Departure OpenArrival OpenDeparture

element AirportName
diagram
type xsd:string
properties
content  simple
used by
elements  Arrival Departure OpenArrival OpenDeparture

element AirRemark
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber Text
used by
element  ItineraryRemarks

element AirTaxiSegment
diagram
properties
content  complex
children ElementNumber TravelerElementNumber VendorCode ServiceDate OriginCityCode DestinationCityCode ActionCode NumberInParty ServiceCityName Text
used by
element  MiscellaneousGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element AirTaxiSegment/ServiceCityName
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element AlternateCurrencyCode
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  CarSegment/SupplementalInformation SupplementalInformation HotelSegment/SupplementalInformation

element Amount
diagram
type extension of xsd:string
properties
content  complex
used by
elements  BaggageInsurance Base Cancel Change DepositInfo ExtraAdultInfo ExtraChildInfo ExtraCribInfo Failure FinalPayment ItemCost MealsInfo PenaltyInfo Premium PremiumInfo Replace RevisionFee RollawayAdultInfo RollawayChildInfo RoomRate TaxInfo Total
attributes
Name   Type   Use   Default   Fixed
Unit derived by: xsd:string required

attribute Amount/@Unit
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  M
enumeration  P

element ARNK
diagram
properties
content  complex
children ElementNumber Date
used by
element  AirGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element Arrival
diagram
properties
content  complex
children AirportCode AirportName Date ChangeOfDay Time Terminal
used by
elements  Flight Passive

element ArrivalCode
diagram
type xsd:string
properties
content  simple
used by
element  FareInfo

element ArrivalDate
diagram
type xsd:date
properties
content  simple
used by
elements  RailSegment SeaSegment TVLSegment

element ArrivalPoint
diagram
type xsd:string
properties
content  simple
used by
elements  BusSegment RailSegment SeaSegment TVLSegment

element ArrivalTime
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  BusSegment RailSegment SeaSegment TVLSegment
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

element Assignment
diagram
properties
content  complex
children TravelerElementNumber SeatLocation RailSeatLocation Characteristic
used by
element  Seat

element Assignment/RailSeatLocation
diagram
properties
isRef  0
content  complex
children CoachNumber SeatNumber

element Assignment/RailSeatLocation/CoachNumber
diagram
type xsd:string
properties
isRef  0
content  simple

element Assignment/RailSeatLocation/SeatNumber
diagram
type xsd:string
properties
isRef  0
content  simple

element AssociatedPNRGroup
diagram
properties
content  complex
children RecordLocator
used by
element  PNRIdentification

element AssociateInformation
diagram
properties
content  complex
children Type AssociateName AddressText
used by
element  OtherInformation

element AssociateName
diagram
type xsd:string
properties
content  simple
used by
element  AssociateInformation

element Association
diagram
properties
content  complex
children TravelerElementNumber
used by
elements  OtherServiceInformation SpecialServiceRequest

element Authorization
diagram
type extension of xsd:string
properties
content  complex
used by
element  CreditCard
attributes
Name   Type   Use   Default   Fixed
Amount xsd:positiveInteger
AirlineCode derived by: xsd:string

attribute Authorization/@Amount
type xsd:positiveInteger
properties
isRef  0

attribute Authorization/@AirlineCode
type restriction of xsd:string
properties
isRef  0
facets
minLength  2
maxLength  3

element BaggageInsurance
diagram
properties
content  complex
children Amount CurrencyCode
used by
element  ExtraFees

element Base
diagram
properties
content  complex
children Amount CurrencyCode
used by
elements  Credit Due

element BaseAmount
diagram
type extension of xsd:string
properties
content  complex
used by
element  AccountingLine
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required

attribute BaseAmount/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  P
enumeration  A

element BillingAndDeliveryData
diagram
properties
content  complex
children FormOfPayment AddressGroup
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element BillingNumber
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  CarSegment/SupplementalInformation SupplementalInformation
facets
minLength  1

element BillingReference
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  CarSegment/SupplementalInformation SupplementalInformation
facets
minLength  1

element BookingCode
diagram
type xsd:string
properties
content  simple
used by
element  Rooms

element BookingOfficeID
diagram
type xsd:string
properties
content  simple
used by
element  PNRIdentification

element BranchCode
diagram
type xsd:string
properties
content  simple
used by
element  OtherInformation

element BusinessAccountRecord
diagram
type xsd:string
properties
content  simple
used by
element  CustomerProfile

element BusName
diagram
type xsd:string
properties
content  simple
used by
element  BusSegment

element BusSegment
diagram
properties
content  complex
children ElementNumber TravelerElementNumber VendorCode DepartureDate OriginCityCode DestinationCityCode ActionCode NumberInParty DeparturePoint DepartureTime ArrivalPoint ArrivalTime BusName ServiceInformation ConfirmationNumber Text
used by
element  MiscellaneousGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element Cabin
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  FareInfo/RelatedSegment TVLSegment
facets
enumeration  P
enumeration  F
enumeration  J
enumeration  C
enumeration  W
enumeration  Y

element Cancel
diagram
properties
content  complex
children Amount Text
used by
elements  Penalties Penalty

element CancellationNumber
diagram
type xsd:string
properties
content  simple
used by
elements  HotelSegment TVLSegment

element CancellationPolicy
diagram
type extension of xsd:string
properties
content  complex
used by
elements  LandGroup/EventSegment/Event HotelSegment
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required
PenaltyValue xsd:string
LatestCancelDate Date
LatestCancelTime Time
IntervalUnits derived by: xsd:string
Interval xsd:int
Description xsd:string

attribute CancellationPolicy/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  N
enumeration  U
enumeration  Y
enumeration  P
enumeration  A
enumeration  NN
enumeration  T

attribute CancellationPolicy/@PenaltyValue
type xsd:string
properties
isRef  0

attribute CancellationPolicy/@LatestCancelDate
type Date
properties
isRef  0

attribute CancellationPolicy/@LatestCancelTime
type Time
properties
isRef  0
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

attribute CancellationPolicy/@IntervalUnits
type restriction of xsd:string
properties
isRef  0
facets
enumeration  D
enumeration  H
enumeration  M
enumeration  W

attribute CancellationPolicy/@Interval
type xsd:int
properties
isRef  0

attribute CancellationPolicy/@Description
type xsd:string
properties
isRef  0

element CarData
diagram
properties
content  complex
children CarVendorCode CarVendorName Location CarType CarTypeDescription ActionCode DistanceUnit Rate ExtraCharges OptionalEquipment Coverage
used by
element  CarSegment

element CarData/Coverage
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
children Amount Calculation CurrencyCode
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string
Code xsd:string
Description xsd:string
TaxIncluded derived by: xsd:string required
IncludedInRate derived by: xsd:string required
Required derived by: xsd:string required

attribute CarData/Coverage/@Type
type restriction of xsd:string
properties
isRef  0
facets
enumeration  VCT
enumeration  VS

attribute CarData/Coverage/@Code
type xsd:string
properties
isRef  0

attribute CarData/Coverage/@Description
type xsd:string
properties
isRef  0

attribute CarData/Coverage/@TaxIncluded
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Y
enumeration  N
enumeration  U

attribute CarData/Coverage/@IncludedInRate
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Y
enumeration  N
enumeration  U

attribute CarData/Coverage/@Required
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Y
enumeration  N
enumeration  U

element CarData/Coverage/Amount
diagram
type xsd:string
properties
isRef  0
content  simple

element CarData/Coverage/Calculation
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
attributes
Name   Type   Use   Default   Fixed
UnitCharge xsd:int required
UnitName derived by: xsd:string required
Quantity xsd:nonNegativeInteger required

attribute CarData/Coverage/Calculation/@UnitCharge
type xsd:int
properties
isRef  0
use  required

attribute CarData/Coverage/Calculation/@UnitName
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  D
enumeration  W
enumeration  M
enumeration  H
enumeration  R
enumeration  KM
enumeration  MI

attribute CarData/Coverage/Calculation/@Quantity
type xsd:nonNegativeInteger
properties
isRef  0
use  required

element CarPassiveSegment
diagram
properties
content  complex
children ElementNumber TravelerElementNumber CarVendorCode CarVendorName CityCode ActionCode NumberOfCars PickUpInfo DropOffInfo CarType CarTypeDescription DistanceUnit Rate ExtraCharges BookingSource ServiceInformation ConfirmationNumber Text
used by
element  MiscellaneousGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element CarPassiveSegment/Rate
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children RateAmount CurrencyCode MileKmRate MileKmLimit
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string optional

attribute CarPassiveSegment/Rate/@Type
type restriction of xsd:string
properties
isRef  0
use  optional
facets
enumeration  D
enumeration  E
enumeration  W
enumeration  M
enumeration  H
enumeration  P

element CarRemark
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber Text
used by
element  ItineraryRemarks

element Carrier
diagram
properties
content  complex
children AirlineCode AirlineName FlightNumber
used by
elements  Flight Open Passive

element CarrierCode
diagram
type xsd:string
properties
content  simple
used by
elements  HotelPassiveSegment LandGroup/Rail/Segment/OperatingCarrier

element CarSegment
diagram
properties
content  complex
children ElementNumber TravelerElementNumber NumberOfCars PickUp DropOff CarData ConfirmationNumber SupplementalInformation Information
used by
element  LandGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element CarSegment/SupplementalInformation
diagram
type extension of CarHotelSupplementalInformationType
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children BookingSource CorporateRateOverride CorporateDiscountNumber PaymentGuarantee FrequentGuest FrequentFlyer AdditionalInformation RateInformation Deposit MerchantCurrencyCode AlternateCurrencyCode Coupon BillingNumber BillingReference TourCode

element CarType
diagram
type extension of xsd:string
properties
content  complex
used by
elements  CarData CarPassiveSegment TVLSegment
attributes
Name   Type   Use   Default   Fixed
CodeType derived by: xsd:string    SIPP

attribute CarType/@CodeType
type restriction of xsd:string
properties
isRef  0
default  SIPP
facets
enumeration  SIPP
enumeration  VS

element CarTypeDescription
diagram
type xsd:string
properties
content  simple
used by
elements  CarData CarPassiveSegment

element CarVendorCode
diagram
type xsd:string
properties
content  simple
used by
elements  CarData CarPassiveSegment

element CarVendorName
diagram
type xsd:string
properties
content  simple
used by
elements  CarData CarPassiveSegment

element CCApprovalCode
diagram
type xsd:string
properties
content  simple
used by
element  FormOfPayment

element ChainCode
diagram
type xsd:string
properties
content  simple
used by
element  Hotel

element ChainName
diagram
type xsd:string
properties
content  simple
used by
element  Hotel

element Change
diagram
properties
content  complex
children Amount Text
used by
elements  Penalties Penalty

element ChangeOfDay
diagram
type xsd:integer
properties
content  simple
used by
element  Arrival

element Characteristic
diagram
type xsd:string
properties
content  simple
used by
element  Assignment

element ChargeCode
diagram
type restriction of xsd:string
properties
content  simple
used by
element  AccountingLine
facets
minLength  3
maxLength  3

element ChaufferBusDriveSegment
diagram
properties
content  complex
children ElementNumber TravelerIDRef SegmentIDRef VendorCode ActionCode NumberOfServices ServiceInfo ServiceType PointOfSale Text TelephoneNumber
used by
element  MiscellaneousGroup
attributes
Name   Type   Use   Default   Fixed
Source optional

element ChaufferBusDriveSegment/NumberOfServices
diagram
type xsd:integer
properties
isRef  0
content  simple
nillable  0

element ChaufferBusDriveSegment/ServiceInfo
diagram
properties
isRef  0
content  complex
children Date Time CityCode

element ChaufferBusDriveSegment/ServiceType
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3
enumeration  CDD
enumeration  CDA
enumeration  BSD
enumeration  BSA

element ChaufferBusDriveSegment/PointOfSale
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element CheckInDate
diagram
type xsd:date
properties
content  simple
used by
elements  Hotel HotelPassiveSegment

element CheckOutDate
diagram
type xsd:date
properties
content  simple
used by
elements  Hotel HotelPassiveSegment

element City
diagram
type xsd:string
properties
content  simple
used by
elements  AddressGroup HotelInformation

element CityCode
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  CarPassiveSegment DropOffInfo Hotel HotelPassiveSegment PickUpInfo Purchase ChaufferBusDriveSegment/ServiceInfo Telephone TourSegment TVLSegment

element CityName
diagram
type xsd:string
properties
content  simple
used by
elements  Hotel Purchase

element Comment
diagram
type xsd:string
properties
content  simple
used by
element  OperatingCarrier

element Commission
diagram
type extension of xsd:string
properties
content  complex
used by
elements  AccountingLine PNRViewRS/TicketExchange/CommissionGroup OtherInformation
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required

attribute Commission/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  P
enumeration  A

element ConfirmationNumber
diagram
type xsd:string
properties
content  simple
used by
elements  BusSegment CarPassiveSegment CarSegment LandGroup/EventSegment/Event HotelPassiveSegment HotelSegment Insurance RailSegment SeaSegment TourSegment TVLSegment

element CorporateDiscountNumber
diagram
type xsd:integer
properties
content  simple
used by
elements  OtherInformation SupplementalInformation

element CorporateFares
diagram
properties
content  complex
children AccountNumber ContractCode
used by
element  FareInfo
attributes
Name   Type   Use   Default   Fixed
Priced derived by: xsd:string required

attribute CorporateFares/@Priced
type restriction of xsd:string
properties
isRef  0
use  required
facets
length  1
enumeration  Y
enumeration  U

element CorporateFares/AccountNumber
diagram
type xsd:string
properties
isRef  0
content  simple

element CorporateFares/ContractCode
diagram
type xsd:string
properties
isRef  0
content  simple

element CorporateRateOverride
diagram
type xsd:string
properties
content  simple
used by
element  SupplementalInformation

element Country
diagram
type xsd:string
properties
content  simple
used by
elements  AddressGroup HotelInformation

element CountryCode
diagram
type xsd:string
properties
content  simple
used by
elements  AddressGroup TravelerName/Residence Telephone

element Coupon
diagram
type xsd:string
properties
content  simple
used by
elements  CarSegment/SupplementalInformation SupplementalInformation HotelSegment/SupplementalInformation

element Coverage
diagram
type xsd:string
properties
content  simple
used by
element  Insurance

element CreationAgent
diagram
type xsd:string
properties
content  simple
used by
element  PNRIdentification

element CreationDate
diagram
type xsd:date
properties
content  simple
used by
element  PNRIdentification

element CreationTime
diagram
type restriction of xsd:string
properties
content  simple
used by
element  PNRIdentification
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

element Credit
diagram
properties
content  complex
children Base TaxInfo Total
used by
element  OtherInformation

element CreditCard
diagram
properties
content  complex
children CCCode CCNumber CCExpiration SecurityID ApprovalCode CardholderFirstName CardholderLastName Authorization ExtendedPayment
used by
elements  FormOfPayment PaymentGuarantee
attributes
Name   Type   Use   Default   Fixed
InhibitPrint derived by: xsd:string
PartialAmount xsd:positiveInteger
IsCompanyCard derived by: xsd:string

attribute CreditCard/@InhibitPrint
type restriction of xsd:string
properties
isRef  0
facets
length  1
enumeration  Y
enumeration  N

attribute CreditCard/@PartialAmount
type xsd:positiveInteger
properties
isRef  0

attribute CreditCard/@IsCompanyCard
type restriction of xsd:string
properties
isRef  0
facets
enumeration  Y

element CreditCard/SecurityID
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element CreditCardInformation
diagram
properties
content  complex
children CCCode CCNumber CardholderLastName
used by
element  Payment

element Crib
diagram
type xsd:integer
properties
content  simple
used by
element  RoomOptions

element CRSID
diagram
type xsd:string
properties
content  simple
used by
element  Ownership

element CurrentPseudoCityCode
diagram
type xsd:string
properties
content  simple
used by
element  PNRIdentification

element CustomerID
diagram
type xsd:string
properties
content  simple
used by
element  OtherInformation

element CustomerIdentification
diagram
properties
content  complex
children ElementNumber Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element CustomerProfile
diagram
properties
content  complex
children ElementNumber PassengerAccountRecord BusinessAccountRecord MasterAccountRecord
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element Date
diagram
type xsd:date
properties
content  simple
used by
elements  ARNK Arrival LandGroup/Rail/Segment/Arrival Departure LandGroup/Rail/Segment/Departure DropOff DropOffInfo DuePaidText FinalPayment OpenArrival OpenDeparture PickUp PickUpInfo ReviewBookingQueue ChaufferBusDriveSegment/ServiceInfo Ticketing Vendor

element DateOfBirth
diagram
type xsd:date
properties
content  simple
used by
elements  LandGroup/Rail/Identification/IdentityCard Infant TravelerName

element DayOfWeek
diagram
type extension of xsd:integer
properties
content  complex
used by
elements  MaximumStay MinimumStay
attributes
Name   Type   Use   Default   Fixed
Day derived by: xsd:integer required

attribute DayOfWeek/@Day
type restriction of xsd:integer
properties
isRef  0
use  required
facets
minInclusive  1
maxInclusive  7
enumeration  1
enumeration  2
enumeration  3
enumeration  4
enumeration  5
enumeration  6
enumeration  7

element DeckName
diagram
type xsd:string
properties
content  simple
used by
element  TVLSegment

element Department
diagram
type xsd:string
properties
content  simple
used by
element  OtherInformation

element Departure
diagram
properties
content  complex
children AirportCode AirportName Date Time Terminal
used by
elements  Flight Passive

element DepartureCity
diagram
type restriction of xsd:string
properties
content  simple
used by
element  Insurance

element DepartureCode
diagram
type xsd:string
properties
content  simple
used by
element  FareInfo

element DepartureDate
diagram
type xsd:date
properties
content  simple
used by
elements  BusSegment FareInfo Insurance RailSegment SeaSegment TVLSegment

element DeparturePoint
diagram
type xsd:string
properties
content  simple
used by
elements  BusSegment RailSegment SeaSegment TVLSegment

element DepartureTime
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  BusSegment RailSegment SeaSegment TVLSegment
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

element Deposit
diagram
type xsd:integer
properties
content  simple
used by
elements  CarSegment/SupplementalInformation SupplementalInformation HotelSegment/SupplementalInformation

element DepositInfo
diagram
properties
content  complex
children Amount CurrencyCode DueDate
used by
element  OtherInformation

element Description
diagram
type xsd:string
properties
content  simple
used by
element  Tax

element Designator
diagram
type xsd:string
properties
content  simple
used by
element  Tax

element DestinationCity
diagram
type xsd:string
properties
content  simple
used by
element  Insurance

element DestinationCityCode
diagram
type xsd:string
properties
content  simple
used by
elements  AirTaxiSegment BusSegment ElectronicTicketInformation LandSegment RailSegment SeaSegment TVLSegment

element DistanceUnit
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  CarData CarPassiveSegment
facets
minLength  1
maxLength  1
enumeration  M
enumeration  K

element DocumentationNumber
diagram
type xsd:string
properties
content  simple
used by
element  TVLSegment

element DocumentInvoiceRemark
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber Keyword Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element DropOff
diagram
properties
content  complex
children Location Date Time CollectFrom
used by
elements  CarSegment TVLSegment

element DropOff/CollectFrom
diagram
type CarDeliverToCollectFromType
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Address Date Time Comment Telephone

element DropOffInfo
diagram
properties
content  complex
children Date Time CityCode Category Number
used by
element  CarPassiveSegment

element Due
diagram
properties
content  complex
children Base TaxInfo Total
used by
element  OtherInformation

element DueDate
diagram
type xsd:date
properties
content  simple
used by
element  DepositInfo

element DuePaidAmount
diagram
type xsd:integer
properties
content  simple
used by
element  DuePaidText

element DuePaidText
diagram
properties
content  complex
children ElementNumber DuePaidTextType Date DuePaidAmount CurrencyCode Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
Indicator derived by: xsd:string required

attribute DuePaidText/@Indicator
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  D
enumeration  P
enumeration  T

element DuePaidTextType
diagram
type restriction of xsd:string
properties
content  simple
used by
element  DuePaidText
facets
enumeration  AS
enumeration  AX
enumeration  AT
enumeration  AH
enumeration  AC

element DutyCode
diagram
type xsd:string
properties
content  simple
used by
element  AgencyData

element ElectronicTicket
diagram
type restriction of xsd:string
properties
content  simple
used by
element  Ticketing
facets
enumeration  Y
enumeration  N

element ElectronicTicketInformation
diagram
properties
content  complex
children OriginCityCode DestinationCityCode TicketsIssued TotalSegments
used by
element  Ticketing

element ElectronicTicketing
diagram
type restriction of xsd:string
properties
content  simple
used by
elements  Flight Passive
facets
minLength  1
maxLength  1
enumeration  Y
enumeration  N

element ElementNumber
diagram
type extension of xsd:string
properties
content  complex
used by
elements  AccountingLine PNRViewRS/AgentIDOverride AirRemark AirTaxiSegment ARNK BusSegment CarPassiveSegment CarRemark CarSegment ChaufferBusDriveSegment PNRViewRS/TicketExchange/CommissionGroup CustomerIdentification CustomerProfile DocumentInvoiceRemark DuePaidText PNRViewRS/Endorsement LandGroup/EventSegment/Event Flight FormOfPayment ItineraryRemarks/FreeFlowRemark FrequentTravelerGroup GeneralRemark PNRViewRS/HiddenRemark HistoricalRemark HotelPassiveSegment HotelRemark HotelSegment Insurance InsuranceSegment LandSegment PNRViewRS/ManualTicket MCOSegment PNRViewRS/MiscTicketingInfo Open OtherRemark OtherSegment OtherServiceInformation Passive PNRViewRS/TicketExchange/PaymentGroup PTASegment LandGroup/Rail RailSegment ReviewBookingQueue SeaSegment Seat LandGroup/Rail/Segment ServicesGroup/Service SpecialServiceRequest PNRViewRS/TicketExchange Ticketing TicketingInstructions TicketRemark PNRViewRS/TourCode TourSegment TVLSegment UserRemark PNRViewRS/ValidatingCarrier
attributes
Name   Type   Use   Default   Fixed
TattooNumber xsd:string optional
TattooQualifier xsd:string optional
SourceElementNumber derived by: xsd:string

attribute ElementNumber/@TattooNumber
type xsd:string
properties
isRef  0
use  optional

attribute ElementNumber/@TattooQualifier
type xsd:string
properties
isRef  0
use  optional

attribute ElementNumber/@SourceElementNumber
type restriction of xsd:string
properties
isRef  0

element Email
diagram
type xsd:string
properties
content  simple
used by
element  EmailAddress

element EmailAddress
diagram
properties
content  complex
children ElementNumber TravelerElementNumber Email Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
Type derived by: xsd:string optional

attribute EmailAddress/@Type
type restriction of xsd:string
properties
isRef  0
use  optional
facets
enumeration  B
enumeration  E
enumeration  H
enumeration  O
enumeration  T

element EmailAddress/ElementNumber
diagram
type extension of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
TattooNumber xsd:string optional
TattooQualifier xsd:string optional

attribute EmailAddress/ElementNumber/@TattooNumber
type xsd:string
properties
isRef  0
use  optional

attribute EmailAddress/ElementNumber/@TattooQualifier
type xsd:string
properties
isRef  0
use  optional

element EndTime
diagram
type restriction of xsd:string
properties
content  simple
used by
element  TVLSegment
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

element Equipment
diagram
properties
content  complex
children Code Name SupplierName
used by
elements  Flight Passive LandGroup/Rail/Segment

element Equipment/SupplierName
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element EquipmentText
diagram
type xsd:string
properties
content  simple
used by
element  OptionalEquipment

element EquipmentType
diagram
type xsd:string
properties
content  simple

element ExtraAdult
diagram
type xsd:integer
properties
content  simple
used by
element  RoomOptions

element ExtraAdultInfo
diagram
properties
content  complex
children Amount CurrencyCode
used by
element  ExtraFees

element ExtraCharges
diagram
properties
content  complex
children ExtraChargesAmount MileKmRate MileKmLimit Description CurrencyCode
used by
elements  CarData CarPassiveSegment
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string
Qualifier derived by: xsd:string prohibited
TaxIncluded derived by: xsd:string required
IncludedInRate derived by: xsd:string required

attribute ExtraCharges/@Type
type restriction of xsd:string
properties
isRef  0
facets
minLength  1
maxLength  2
enumeration  H
enumeration  D
enumeration  W
enumeration  M
enumeration  A
enumeration  CH
enumeration  E
enumeration  FE
enumeration  T
enumeration  F
enumeration  DC
enumeration  SP
enumeration  CP
enumeration  AR
enumeration  AD
enumeration  PM
enumeration  PK
enumeration  FM
enumeration  FK
enumeration  U

attribute ExtraCharges/@Qualifier
type restriction of xsd:string
properties
isRef  0
use  prohibited
facets
minLength  3
maxLength  3
enumeration  IES
enumeration  IBR
enumeration  OPT
enumeration  MAN
enumeration  NBR
enumeration  ITX
enumeration  NTX

attribute ExtraCharges/@TaxIncluded
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Y
enumeration  N
enumeration  U

attribute ExtraCharges/@IncludedInRate
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Y
enumeration  N
enumeration  U

element ExtraCharges/Description
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element ExtraChargesAmount
diagram
type extension of xsd:decimal
properties
content  complex
used by
element  ExtraCharges
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string    A

attribute ExtraChargesAmount/@Type
type restriction of xsd:string
properties
isRef  0
default  A
facets
enumeration  P
enumeration  A

element ExtraChild
diagram
type xsd:integer
properties
content  simple
used by
element  RoomOptions

element ExtraChildInfo
diagram
properties
content  complex
children Amount CurrencyCode
used by
element  ExtraFees

element ExtraCribInfo
diagram
properties
content  complex
children Amount CurrencyCode
used by
element  ExtraFees

element ExtraFees
diagram
properties
content  complex
children ExtraCribInfo ExtraAdultInfo ExtraChildInfo RollawayAdultInfo RollawayChildInfo PenaltyInfo RevisionFee MealsInfo BaggageInsurance
used by
element  OtherInformation

element Failure
diagram
properties
content  complex
children Amount Text
used by
element  Penalty

element FareApplication
diagram
type restriction of xsd:string
properties
content  simple
used by
element  AccountingLine
facets
minLength  3
maxLength  3
enumeration  ONE
enumeration  PER
enumeration  ALL

element FareBasisCode
diagram
type xsd:string
properties
content  simple
used by
element  FareInfo

element FareComponent
diagram
properties
content  complex
children CurrencyCode BaseFare Taxes
used by
element  FareInfo
attributes
Name   Type   Use   Default   Fixed
Total xsd:integer required

attribute FareComponent/@Total
type xsd:integer
properties
isRef  0
use  required

element FareComponent/BaseFare
diagram
properties
isRef  0
content  complex
children Surcharges
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute FareComponent/BaseFare/@Amount
type xsd:integer
properties
isRef  0
use  required

element FareComponent/BaseFare/Surcharges
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Surcharge
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer

attribute FareComponent/BaseFare/Surcharges/@Amount
type xsd:integer
properties
isRef  0

element FareComponent/BaseFare/Surcharges/Surcharge
diagram
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
children Designator Description
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute FareComponent/BaseFare/Surcharges/Surcharge/@Amount
type xsd:integer
properties
isRef  0
use  required

element FareComponent/BaseFare/Surcharges/Surcharge/Designator
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element FareComponent/BaseFare/Surcharges/Surcharge/Description
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element FareGroup
diagram
properties
content  complex
children SegmentElementNumber TourCode CurrencyCode TravelerGroup OptionalServices IncludedServices ValidatingCarrier TicketingIdentifier
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
FareNumber xsd:string
FarePriced derived by: xsd:string required
FareType derived by: xsd:string required
TravelerCount derived by: xsd:integer required
TotalPrice xsd:integer required
TotalJourneyPrice xsd:integer
TotalBaseFare xsd:integer
HistoricPricingDate xsd:date optional
ReissueOnly derived by: xsd:string
SourceFareNumber xsd:string
FareCreationDate xsd:date
FareModificationDate xsd:date

attribute FareGroup/@FareNumber
type xsd:string
properties
isRef  0

attribute FareGroup/@FarePriced
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  MANU
enumeration  AUTO

attribute FareGroup/@FareType
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  PUBL
enumeration  NEGO
enumeration  BOTH
enumeration  HIST
enumeration  UNDF

attribute FareGroup/@TravelerCount
type restriction of xsd:integer
properties
isRef  0
use  required
facets
minInclusive  0
maxInclusive  18

attribute FareGroup/@TotalPrice
type xsd:integer
properties
isRef  0
use  required

attribute FareGroup/@TotalJourneyPrice
type xsd:integer
properties
isRef  0

attribute FareGroup/@TotalBaseFare
type xsd:integer
properties
isRef  0

attribute FareGroup/@HistoricPricingDate
type xsd:date
properties
isRef  0
use  optional

attribute FareGroup/@ReissueOnly
type restriction of xsd:string
properties
isRef  0
facets
enumeration  Y
enumeration  N

attribute FareGroup/@SourceFareNumber
type xsd:string
properties
isRef  0

attribute FareGroup/@FareCreationDate
type xsd:date
properties
isRef  0

attribute FareGroup/@FareModificationDate
type xsd:date
properties
isRef  0

element FareGroup/TourCode
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element FareGroup/OptionalServices
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Service
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element FareGroup/IncludedServices
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Service
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element FareGroup/ValidatingCarrier
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children AirlineCode

element FareGroup/TicketingIdentifier
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  1
enumeration  E
enumeration  P

element FareInfo
diagram
properties
content  complex
children DepartureDate DepartureCode ArrivalCode RelatedSegment FareBasisCode FareComponent FareRefKey Discount TicketDesignator AirlineCode CorporateFares
used by
element  FareRules
attributes
Name   Type   Use   Default   Fixed
DetailedFareType

element FareInfo/RelatedSegment
diagram
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
children SegmentIDRef Cabin ClassOfService BaggageAllowance NVB NVA StopOverIndicator BaggagePolicy

element FareInfo/RelatedSegment/StopOverIndicator
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  1
enumeration  X
enumeration  O

element FareInfo/Discount
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string

attribute FareInfo/Discount/@Type
type restriction of xsd:string
properties
isRef  0
facets
enumeration  A
enumeration  P

element FareInfo/TicketDesignator
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element FareRules
diagram
properties
content  complex
children FareInfo Penalty AdvancePurchase AdvanceTicketing MinimumStay MaximumStay TicketByDate Remark Endorsement FareCalculation TourCode
used by
element  TravelerGroup

element FareRules/Endorsement
diagram
type extension of BasicEndorsement
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
children Text
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required

attribute FareRules/Endorsement/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
length  1
enumeration  A
enumeration  M
enumeration  P

element FareRules/FareCalculation
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element FareRules/TourCode
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element FaxNumber
diagram
type xsd:string
properties
content  simple
used by
element  HotelInformation

element FeeApplies
diagram
properties
content  complex
used by
element  Penalty
attributes
Name   Type   Use   Default   Fixed
FailureToConfirm derived by: xsd:string    N
Cancellation derived by: xsd:string    N
Carrier derived by: xsd:string    N
ReplaceTicket derived by: xsd:string    N
ChangeItinerary derived by: xsd:string    N

attribute FeeApplies/@FailureToConfirm
type restriction of xsd:string
properties
isRef  0
default  N
facets
enumeration  Y
enumeration  N

attribute FeeApplies/@Cancellation
type restriction of xsd:string
properties
isRef  0
default  N
facets
enumeration  Y
enumeration  N

attribute FeeApplies/@Carrier
type restriction of xsd:string
properties
isRef  0
default  N
facets
enumeration  Y
enumeration  N

attribute FeeApplies/@ReplaceTicket
type restriction of xsd:string
properties
isRef  0
default  N
facets
enumeration  Y
enumeration  N

attribute FeeApplies/@ChangeItinerary
type restriction of xsd:string
properties
isRef  0
default  N
facets
enumeration  Y
enumeration  N

element FFCode
diagram
type xsd:string
properties
content  simple
used by
element  FrequentFlyer

element FFCompanyCode
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FFCompanyName
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FFFlyingCompany
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FFLoyaltyLevel
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FFNumber
diagram
type xsd:string
properties
content  simple
used by
elements  FrequentFlyer FrequentTravelerGroup

element FFProgramName
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FFSharedProgramName
diagram
type xsd:string
properties
content  simple
used by
element  FrequentTravelerGroup

element FGCode
diagram
type xsd:string
properties
content  simple
used by
element  FrequentGuest

element FGNumber
diagram
type xsd:string
properties
content  simple
used by
element  FrequentGuest

element FinalPayment
diagram
properties
content  complex
children Amount CurrencyCode Date
used by
element  OtherInformation

element Flight
diagram
properties
content  complex
children ElementNumber Departure Arrival Carrier OperatingCarrier Equipment CheckIn NumberOfStops StopInfo FlightDuration Meals ElectronicTicketing ClassOfService ActionCode NumberInParty Information
used by
element  AirGroup
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
FlownIndicator derived by: xsd:string optional
MarriedSegment derived by: xsd:string optional
CnxxIndicator derived by: xsd:string optional

attribute Flight/@FlownIndicator
type restriction of xsd:string
properties
isRef  0
use  optional
facets
enumeration  Y
enumeration  N

attribute Flight/@MarriedSegment
type restriction of xsd:string
properties
isRef  0
use  optional
facets
minLength  1
maxLength  1
enumeration  B
enumeration  E

attribute Flight/@CnxxIndicator
type restriction of xsd:string
properties
isRef  0
use  optional
facets
enumeration  N
enumeration  Y

element Flight/CheckIn
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children AirlineCode AirlineName Time

element Flight/StopInfo
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Stop

element Flight/StopInfo/Stop
diagram
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
children ArrivingInfo DepartingInfo NewEquipment GroundTime
attributes
Name   Type   Use   Default   Fixed
ChangeOfGauge derived by: xsd:string optional

attribute Flight/StopInfo/Stop/@ChangeOfGauge
type restriction of xsd:string
properties
isRef  0
use  optional

element Flight/StopInfo/Stop/ArrivingInfo
diagram
properties
isRef  0
content  complex
children StopAirportCode Date Time Terminal

element Flight/StopInfo/Stop/ArrivingInfo/StopAirportCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3

element Flight/StopInfo/Stop/ArrivingInfo/Date
diagram
type Date
properties
isRef  0
content  simple

element Flight/StopInfo/Stop/ArrivingInfo/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element Flight/StopInfo/Stop/DepartingInfo
diagram
properties
isRef  0
content  complex
children DestinationAirportCode Date Time Terminal Meals FlightDuration

element Flight/StopInfo/Stop/DepartingInfo/DestinationAirportCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3

element Flight/StopInfo/Stop/DepartingInfo/Date
diagram
type Date
properties
isRef  0
content  simple

element Flight/StopInfo/Stop/DepartingInfo/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element Flight/StopInfo/Stop/DepartingInfo/FlightDuration
diagram
type TimeDurationHoursMinutes
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
pattern  [0-9][0-9]:[0-5][0-9]

element Flight/StopInfo/Stop/NewEquipment
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Code Name

element Flight/StopInfo/Stop/GroundTime
diagram
type TimeDurationHoursMinutes
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
pattern  [0-9][0-9]:[0-5][0-9]

element Flight/ClassOfService
diagram
type ClassOfServiceWithCabinType
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
facets
minLength  1
maxLength  1
pattern  [A-Z]
attributes
Name   Type   Use   Default   Fixed
Cabin CabinType optional

element Flight/ActionCode
diagram
type extension of xsd:string
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
Status derived by: xsd:string

attribute Flight/ActionCode/@Status
type restriction of xsd:string
properties
isRef  0
facets
length  1

element FlightArrival
diagram
properties
content  complex
children AirlineCode AirlineName FlightNumber
used by
element  PickUp

element FlightDuration
diagram
type restriction of xsd:string
properties
content  simple
used by
element  Flight
facets
pattern  [0-9][0-9]:[0-5][0-9]

element FormOfPayment
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber ServiceElementNumber CreditCard CCApprovalCode Other DirectBill Invoice NativeElementText CurrencyCode
used by
element  BillingAndDeliveryData
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
PaymentStatus derived by: xsd:string optional

attribute FormOfPayment/@PaymentStatus
type restriction of xsd:string
properties
isRef  0
use  optional
facets
pattern  OK
pattern  PE
pattern  DC

element FormOfPayment/ServiceElementNumber
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded

element FormOfPayment/DirectBill
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Company PaymentAmount

element FormOfPayment/DirectBill/Company
diagram
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
CompanyName xsd:string
CompanyCode xsd:string required

attribute FormOfPayment/DirectBill/Company/@CompanyName
type xsd:string
properties
isRef  0

attribute FormOfPayment/DirectBill/Company/@CompanyCode
type xsd:string
properties
isRef  0
use  required

element FormOfPayment/Invoice
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children DatePaid FirstName LastName PaymentComment PaymentAmount

element FormOfPayment/Invoice/DatePaid
diagram
type Date
properties
isRef  0
content  simple

element FormOfPayment/Invoice/FirstName
diagram
type xsd:string
properties
isRef  0
content  simple

element FormOfPayment/Invoice/LastName
diagram
type xsd:string
properties
isRef  0
content  simple

element FormOfPayment/Invoice/PaymentComment
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element FrequentFlyer
diagram
properties
content  complex
children FFCode FFNumber
used by
elements  OtherInformation SupplementalInformation

element FrequentGuest
diagram
properties
content  complex
children FGCode FGNumber
used by
elements  OtherInformation SupplementalInformation

element FrequentTravelerGroup
diagram
properties
content  complex
children ElementNumber TravelerElementNumber FFCompanyCode FFCompanyName FFNumber FFFlyingCompany FFProgramName FFSharedProgramName FFLoyaltyLevel
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element GeneralRemark
diagram
properties
content  complex
children ElementNumber TravelerElementNumber SegmentElementNumber Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef
Category xsd:string optional   <empty>
Type xsd:string optional

attribute GeneralRemark/@Category
type xsd:string
properties
isRef  0
default  <empty>
use  optional

attribute GeneralRemark/@Type
type xsd:string
properties
isRef  0
use  optional

element GroundTransportation
diagram
type xsd:string
properties
content  simple
used by
element  TVLSegment

element Guarantee
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1
maxLength  1
enumeration  Y

element Guaranteed
diagram
type xsd:string
properties
content  simple
used by
element  RateInformation

element HistoricalRemark
diagram
properties
content  complex
children ElementNumber Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element History
diagram
properties
content  complex
children Text
used by
element  PNRViewRS
attributes
Name   Type   Use   Default   Fixed
Source
SourceRef

element History/Text
diagram
type extension of xsd:string
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
attributes
Name   Type   Use   Default   Fixed
Date xsd:date
Time derived by: xsd:string
Category derived by: xsd:string

attribute History/Text/@Date
type xsd:date
properties
isRef  0

attribute History/Text/@Time
type restriction of xsd:string
properties
isRef  0
facets
pattern  ([0-1][0-9]|2[0-4]):[0-5][0-9]

attribute History/Text/@Category
type restriction of xsd:string
properties
isRef  0
facets
enumeration  ACL
enumeration  ADR
enumeration  AIR
enumeration  ALL
enumeration  CAR
enumeration  CRP
enumeration  FFL
enumeration  FOP
enumeration  HIS
enumeration  HTL
enumeration  ITN
enumeration  OSI
enumeration  PRI
enumeration  QUE
enumeration  REM
enumeration  SSR
enumeration  TVL

element Hotel
diagram
properties
content  complex
children CheckInDate CheckOutDate NumberOfNights NumberOfPersons ChainCode ChainName PropertyCode PropertyName CityCode CityName SafetyCompliance CurrencyCode HotelInformation
used by
