Schema InterlineAgreementRQ.xsd


element InterlineAgreementRQ

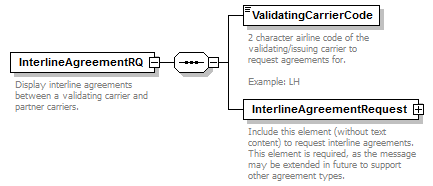

diagram
properties	content  complex
children	ValidatingCarrierCode InterlineAgreementRequest

element InterlineAgreementRQ/ValidatingCarrierCode

diagram
type	CarrierCodeType
properties	isRef  0 content  simple
facets	pattern  [A-Z]{2}|[A-Z][0-9]|[0-9][A-Z]

element InterlineAgreementRQ/InterlineAgreementRequest

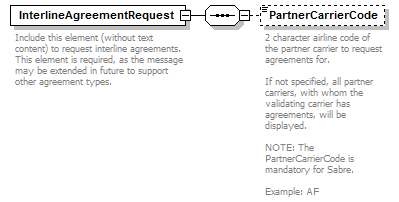

diagram
properties	isRef  0 content  complex
children	PartnerCarrierCode

element InterlineAgreementRQ/InterlineAgreementRequest/PartnerCarrierCode

diagram
type	CarrierCodeType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	pattern  [A-Z]{2}|[A-Z][0-9]|[0-9][A-Z]

simpleType CarrierCodeType

type	restriction of xs:string
used by	elements  InterlineAgreementRQ/InterlineAgreementRequest/PartnerCarrierCode InterlineAgreementRQ/ValidatingCarrierCode
facets	pattern  [A-Z]{2}|[A-Z][0-9]|[0-9][A-Z]
