Schema DeliverValueDocumentRQ.xsd


element DeliverValueDocumentRQ
diagram
properties
content  complex
children RecordLocator EmailAddress ValueDocumentLanguage
attributes
Name   Type   Use   Default   Fixed
version xsd:string
Source

attribute DeliverValueDocumentRQ/@version
type xsd:string
properties
isRef  0

element DeliverValueDocumentRQ/RecordLocator
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element DeliverValueDocumentRQ/EmailAddress
diagram
properties
isRef  0
content  complex
children Email

element DeliverValueDocumentRQ/EmailAddress/Email
diagram
type ValidEmailAddressType
properties
isRef  0
content  simple
facets
pattern  [a-zA-Z0-9!#$%&'*+/=?^_`{|}~\-]+(\.[a-zA-Z0-9!#$%&'*+/=?^_`{|}~\-]+)*@([0-9A-Za-z][0-9A-Za-z\-]*[0-9A-Za-z]\.)+[a-zA-Z]{2,4}

element DeliverValueDocumentRQ/ValueDocumentLanguage
diagram
type Lang
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  2
pattern  [a-z][a-z]

complexType RailFareGroupRuleType
diagram
type extension of RailRuleType
properties
base  RailRuleType
children Text Penalty
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required
ApplicableBookingStatus derived by: xsd:string
ApplicableTDO RailTicketDeliveryType
ExpirationDateTime
IsEstimated derived by: xsd:string
PriceType derived by: xsd:string

attribute RailFareGroupRuleType/@PriceType
type restriction of xsd:string
properties
isRef  0
facets
enumeration  Ticket
enumeration  SeatReservation
enumeration  Accommodation
enumeration  OnboardServices
enumeration  Fee

complexType RailRuleType
diagram
children Text Penalty
used by
complexType  RailFareGroupRuleType
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required
ApplicableBookingStatus derived by: xsd:string
ApplicableTDO RailTicketDeliveryType
ExpirationDateTime
IsEstimated derived by: xsd:string

attribute RailRuleType/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  EXCHANGE_ALLOWED
enumeration  EXCHANGE_PROHIBITED
enumeration  REFUND_ALLOWED
enumeration  REFUND_PROHIBITED
enumeration  TEXT

attribute RailRuleType/@ApplicableBookingStatus
type restriction of xsd:string
properties
isRef  0
facets
enumeration  BOOKED
enumeration  CONFIRMED
enumeration  TICKETED
enumeration  RETURNED

attribute RailRuleType/@ApplicableTDO
type RailTicketDeliveryType
properties
isRef  0
facets
enumeration  EML
enumeration  PNR
enumeration  TBC
enumeration  TBM
enumeration  TBO
enumeration  TBX
enumeration  TML
enumeration  TOF
enumeration  TVM

attribute RailRuleType/@ExpirationDateTime
properties
isRef  0

attribute RailRuleType/@IsEstimated
type restriction of xsd:string
properties
isRef  0
facets
enumeration  Y

element RailRuleType/Text
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element RailRuleType/Penalty
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
Amount xsd:positiveInteger required

attribute RailRuleType/Penalty/@Amount
type xsd:positiveInteger
properties
isRef  0
use  required

complexType RailServiceAttributeType
diagram
used by
element  RailServiceType/Attribute
attributes
Name   Type   Use   Default   Fixed
Code derived by: xsd:string required
Value derived by: xsd:string required

attribute RailServiceAttributeType/@Code
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  SeatPreference
enumeration  SeatQuantity
enumeration  SeatArea
enumeration  SeatLocation
enumeration  SeatZone
enumeration  SeatUnavailablePolicy

attribute RailServiceAttributeType/@Value
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  Any
enumeration  1
enumeration  2
enumeration  3
enumeration  4
enumeration  5
enumeration  OpenSaloon
enumeration  Compartment
enumeration  OpenSaloonWithTable
enumeration  QuietZone
enumeration  PhoneZone
enumeration  Aisle
enumeration  Window
enumeration  OppositeWindow
enumeration  Opposite
enumeration  SideBySide
enumeration  Backward
enumeration  Forward
enumeration  Lavatory
enumeration  Luggage
enumeration  Middle
enumeration  Power
enumeration  Single
enumeration  Table
enumeration  FailIfUnavailable
enumeration  RestrictToAvailableMatchingPrefs
enumeration  RestrictToAvailable
enumeration  BookWithoutSeats

complexType RailServiceAvailabilityRestrictionType
diagram
children SegmentIDRef Text

complexType RailServicePriceType
diagram
attributes
Name   Type   Use   Default   Fixed
Total xsd:integer required

attribute RailServicePriceType/@Total
type xsd:integer
properties
isRef  0
use  required

complexType RailServiceType
diagram
children SegmentIDRef Attribute ReferenceKey
attributes
Name   Type   Use   Default   Fixed
Type RailServiceTypeType required

attribute RailServiceType/@Type
type RailServiceTypeType
properties
isRef  0
use  required
facets
enumeration  Accommodation
enumeration  Internet
enumeration  LocalTransit
enumeration  Meal
enumeration  ReservationSeatsOnly
enumeration  ReservationWithSeats
enumeration  TicketsByMail
enumeration  TicketsSeparateInAndOutbound
enumeration  CityTicketOutboundSingle
enumeration  CityTicketOutboundDay
enumeration  CityTicketInboundSingle
enumeration  CityTicketInboundDay

element RailServiceType/Attribute
diagram
type RailServiceAttributeType
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
attributes
Name   Type   Use   Default   Fixed
Code derived by: xsd:string required
Value derived by: xsd:string required

element RailServiceType/ReferenceKey
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

complexType RailTransferToFromSegmentType
diagram
attributes
Name   Type   Use   Default   Fixed
Time TimeDurationHoursMinutes
MeansOfTransfer RailMeansOfTransferType

attribute RailTransferToFromSegmentType/@Time
type TimeDurationHoursMinutes
properties
isRef  0
facets
pattern  [0-9][0-9]:[0-5][0-9]

attribute RailTransferToFromSegmentType/@MeansOfTransfer
type RailMeansOfTransferType
properties
isRef  0
facets
enumeration  BICYCLE
enumeration  CAR
enumeration  FOOT
enumeration  TAXI

simpleType IsStopoverLocationType
type restriction of xsd:string
facets
enumeration  N
enumeration  Y

simpleType RailAmenityType
type restriction of xsd:string
facets
enumeration  BAGGAGE
enumeration  BAR
enumeration  BUFFET
enumeration  DINING
enumeration  MEAL
enumeration  NEWSPAPER
enumeration  QUIET
enumeration  SNACK
enumeration  TAXI
enumeration  TROLLEY
enumeration  AUDIO
enumeration  VIDEO
enumeration  POWER_SOCKET
enumeration  LOUNGE_ACCESS
enumeration  INTERNET
enumeration  INTERNET_AVAILABLE
enumeration  PARKING

simpleType RailBookingStatusType
type restriction of xsd:string
facets
enumeration  BOOKED
enumeration  CONFIRMED
enumeration  TICKETED
enumeration  ABANDONED
enumeration  RELEASED
enumeration  CANCELED
enumeration  WITHDRAWN
enumeration  RETURNED
enumeration  INVALID

simpleType RailCustomerCardType
type restriction of xsd:string
facets
enumeration  Amtrak
enumeration  BahnCard
enumeration  BahnBonusCard

simpleType RailDiscountType
type restriction of xsd:string
facets
enumeration  AmtrakAAA
enumeration  AmtrakCorporate
enumeration  AmtrakIntlStudentID
enumeration  AmtrakNatAssocRailPax
enumeration  AmtrakStudentAdvantage
enumeration  AmtrakUSArmedForces
enumeration  AmtrakVeteranAdvantage
enumeration  AtocUKAnnualGold
enumeration  AtocUKChildDisability
enumeration  AtocUKDisability
enumeration  AtocUKFamilyFriends
enumeration  AtocUKGroupsave3
enumeration  AtocUKGroupsave4
enumeration  AtocUKHMArmedForces
enumeration  AtocUKJobcentrePlus
enumeration  AtocUKNetwork
enumeration  AtocUKSenior
enumeration  AtocUKTwoTogether
enumeration  AtocUKYouth
enumeration  BahnCard1st25
enumeration  BahnCard2nd25
enumeration  BahnCard1st50
enumeration  BahnCard2nd50
enumeration  BahnCardBusiness1st25
enumeration  BahnCardBusiness2nd25
enumeration  BahnCardBusiness1st50
enumeration  BahnCardBusiness2nd50
enumeration  A-VORTEILScardInclRAILPLUS
enumeration  CH-HalbtaxAboInclRAILPLUS
enumeration  CH-HalbtaxAbo
enumeration  NL-VoordeelurenaboInclRAILPLUS
enumeration  NL-Voordeelurenabo
enumeration  RAILPLUS
enumeration  DBCorporate
enumeration  EurostarCorporate
enumeration  RenfeCarnetGo25ISTC
enumeration  RenfeCarnetJoven
enumeration  RenfeCorporate
enumeration  RenfeTarjetaDorada
enumeration  RenfeTarjetaJovenRenfe
enumeration  RenfeTarjetaRailPlusJunior
enumeration  ThalysCorporate
enumeration  VIACorporate

simpleType RailFrequentTravelerType
type restriction of xsd:string
facets
enumeration  BahnCard
enumeration  BahnBonusCard
enumeration  Amtrak

simpleType RailMeansOfTransferChoiceType
type restriction of xsd:string
facets
enumeration  FOOT
enumeration  FOOT_OR_BICYCLE
enumeration  FOOT_OR_CAR
enumeration  FOOT_OR_TAXI

simpleType RailMeansOfTransferType
type restriction of xsd:string
used by
attribute  RailTransferToFromSegmentType/@MeansOfTransfer
facets
enumeration  BICYCLE
enumeration  CAR
enumeration  FOOT
enumeration  TAXI

simpleType RailSeatPrefType
type restriction of xsd:string
facets
enumeration  FORWARD
enumeration  BACKWARD
enumeration  AIRLINE
enumeration  WINDOW
enumeration  AISLE
enumeration  COMPARTMENT
enumeration  MIDDLE
enumeration  QUIET
enumeration  TABLE
enumeration  POWER
enumeration  PHONE
enumeration  LUGGAGE
enumeration  LAVATORY
enumeration  SINGLE

simpleType RailSegmentTypeType
type restriction of xsd:string
facets
enumeration  Bus
enumeration  Car
enumeration  Ferry
enumeration  Ship
enumeration  Hovercraft
enumeration  Suburban
enumeration  Taxi
enumeration  Train
enumeration  Tram
enumeration  Transfer
enumeration  Underground
enumeration  Unknown
enumeration  Walking

simpleType RailServiceAvailabilityStatusType
type restriction of xsd:string
facets
enumeration  AsRequested
enumeration  WithRestrictions

simpleType RailServiceTypeType
type restriction of xsd:string
used by
attribute  RailServiceType/@Type
facets
enumeration  Accommodation
enumeration  Internet
enumeration  LocalTransit
enumeration  Meal
enumeration  ReservationSeatsOnly
enumeration  ReservationWithSeats
enumeration  TicketsByMail
enumeration  TicketsSeparateInAndOutbound
enumeration  CityTicketOutboundSingle
enumeration  CityTicketOutboundDay
enumeration  CityTicketInboundSingle
enumeration  CityTicketInboundDay

simpleType RailTicketDeliveryDestinationType
type restriction of xsd:string
facets
enumeration  EU
enumeration  GLOBAL
enumeration  NA
enumeration  UK

simpleType RailTicketDeliveryType
type restriction of xsd:string
used by
attribute  RailRuleType/@ApplicableTDO
facets
enumeration  EML
enumeration  PNR
enumeration  TBC
enumeration  TBM
enumeration  TBO
enumeration  TBX
enumeration  TML
enumeration  TOF
enumeration  TVM

attribute DetailedFareType
type restriction of xsd:string
facets
enumeration  A35F
enumeration  CA35
enumeration  CNFR
enumeration  DDFR
enumeration  A15F
enumeration  CA15
enumeration  CDDF
enumeration  PRFR
enumeration  NRFR
enumeration  PUBL
enumeration  NEGO

attribute DistanceUnit
type restriction of xsd:string
used by
element  GeoCoded
facets
minLength  1
maxLength  1
enumeration  M
enumeration  K

attribute FareBrand
type xsd:string

attribute FareType
type restriction of xsd:string
facets
enumeration  PUBL
enumeration  NEGO
enumeration  BOTH
enumeration  HIST
enumeration  UNDF

attribute POIType
type restriction of xsd:string

attribute Quantity
type restriction of xsd:integer
properties
default  1
facets
minInclusive  1
maxInclusive  99

attribute Radius
type restriction of xsd:unsignedLong
used by
element  GeoCoded

attribute ReasonCode
type restriction of xsd:string
facets
length  1

attribute SaleStatus
type restriction of xsd:string
facets
enumeration  Issued
enumeration  Booked

attribute ServiceCode
type restriction of xsd:string
facets
length  2

attribute Source
type restriction of xsd:string
used by
elements  DeliverValueDocumentRQ Error ForInfo
facets
minLength  1

attribute SourceRef
type restriction of xsd:string
used by
elements  Error ForInfo
facets
minLength  1

attribute SubCode
type restriction of xsd:string
facets
length  3

attribute Timeout
type xsd:positiveInteger

element AltTicketingDate
diagram
properties
content  complex
children Date

element AltTicketingDate/Date
diagram
type Date
properties
isRef  0
content  simple

element ApprovalCode
diagram
type xsd:string
properties
content  simple

element Attributes
diagram
properties
content  complex
children Group SubGroup Desc1 Desc2

element Attributes/Group
diagram
properties
isRef  0
content  complex
children Code Text

element Attributes/Group/Code
diagram
type xsd:string
properties
isRef  0
content  simple
used by
element  Error

element Attributes/Group/Text
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType

element Attributes/SubGroup
diagram
properties
isRef  0
content  complex
children Code Text

element Attributes/SubGroup/Code
diagram
type xsd:string
properties
isRef  0
content  simple
used by
element  Error

element Attributes/SubGroup/Text
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType

element Attributes/Desc1
diagram
properties
isRef  0
content  complex
children Code Text

element Attributes/Desc1/Code
diagram
type xsd:string
properties
isRef  0
content  simple
used by
element  Error

element Attributes/Desc1/Text
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType

element Attributes/Desc2
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Code Text

element Attributes/Desc2/Code
diagram
type xsd:string
properties
isRef  0
content  simple
used by
element  Error

element Attributes/Desc2/Text
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType

element Authentication
diagram
properties
content  complex
children Surname GivenName Car Hotel CreditCard MaestroCard IdentityCard CustomerCard

element Authentication/Car
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children PickUp RateOptions

element Authentication/Car/PickUp
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Location Date

element Authentication/Car/PickUp/Location
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children CityCode Category Number

element Authentication/Car/PickUp/Location/CityCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3

element Authentication/Car/PickUp/Location/Category
diagram
properties
isRef  0
used by
complexTypes  CarLocation RequestForCarLocation

element Authentication/Car/PickUp/Location/Number
diagram
type xsd:string
properties
isRef  0
content  simple

element Authentication/Car/PickUp/Date
diagram
properties
isRef  0
minOcc  0
maxOcc  1

element Authentication/Car/RateOptions
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
Category derived by: xsd:string

attribute Authentication/Car/RateOptions/@Category
type restriction of xsd:string
properties
isRef  0
facets
enumeration  A
enumeration  B
enumeration  C
enumeration  G
enumeration  I
enumeration  K
enumeration  L
enumeration  P
enumeration  R
enumeration  S
enumeration  U
enumeration  V
enumeration  X

element Authentication/Hotel
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
CheckInDate Date
CheckOutDate Date
ChainCode xsd:string
PropertyCode xsd:string

attribute Authentication/Hotel/@CheckInDate
type Date
properties
isRef  0

attribute Authentication/Hotel/@CheckOutDate
type Date
properties
isRef  0

attribute Authentication/Hotel/@ChainCode
type xsd:string
properties
isRef  0

attribute Authentication/Hotel/@PropertyCode
type xsd:string
properties
isRef  0

element Authentication/CreditCard
diagram
properties
isRef  0
content  complex
children CCNumber

element Authentication/MaestroCard
diagram
properties
isRef  0
content  complex
children BankIdentificationCode AccountNumber

element Authentication/MaestroCard/BankIdentificationCode
diagram
type xsd:string
properties
isRef  0
content  simple

element Authentication/MaestroCard/AccountNumber
diagram
type xsd:string
properties
isRef  0
content  simple

element Authentication/IdentityCard
diagram
properties
isRef  0
content  complex
children CardNumber ExpirationDate DateOfBirth IssueCountry

element Authentication/IdentityCard/CardNumber
diagram
type xsd:string
properties
isRef  0
content  simple

element Authentication/IdentityCard/ExpirationDate
diagram
type xsd:date
properties
isRef  0
content  simple

element Authentication/IdentityCard/DateOfBirth
diagram
type xsd:date
properties
isRef  0
content  simple

element Authentication/IdentityCard/IssueCountry
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
pattern  [A-Z]{2}

element Authentication/CustomerCard
diagram
properties
isRef  0
content  complex
children CardNumber
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required

attribute Authentication/CustomerCard/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  BahnCard
enumeration  BahnBonusCard

element Authentication/CustomerCard/CardNumber
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element BaggageAllowance
diagram
type xsd:string
properties
content  simple

element BaggagePolicy
diagram
properties
content  complex
children CurrencyCode Text Url
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer optional
BaggageItem derived by: xsd:string

attribute BaggagePolicy/@Amount
type xsd:integer
properties
isRef  0
use  optional

attribute BaggagePolicy/@BaggageItem
type restriction of xsd:string
properties
isRef  0
facets
minLength  1
maxLength  2
pattern  ([1-9]{1,2})|BF|C|CF|E

element BaggagePolicy/Url
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element BookingInstructions
diagram
properties
content  complex
children SSRCode OSIText UpgradeMethod Text

element BookingInstructions/OSIText
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  simple

element BookingInstructions/UpgradeMethod
diagram
type extension of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
NewClass xsd:string

attribute BookingInstructions/UpgradeMethod/@NewClass
type xsd:string
properties
isRef  0

element BookingSource
diagram
type extension of xsd:string
properties
content  complex
used by
complexType  CarHotelSupplementalInformationType
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string

attribute BookingSource/@Type
type restriction of xsd:string
properties
isRef  0
facets
enumeration  ARC
enumeration  IATA
enumeration  TIDS
enumeration  CLIA
enumeration  AAA
enumeration  GDS
enumeration  OTHER

element CardholderFirstName
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1

element CardholderIDRef
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1

element CardholderLastName
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1

element Category
diagram
type restriction of xsd:string
properties
content  simple
used by
complexTypes  CarLocation RequestForCarLocation
facets
enumeration  A
enumeration  C
enumeration  D
enumeration  E
enumeration  F
enumeration  N
enumeration  O
enumeration  P
enumeration  R
enumeration  S
enumeration  T
enumeration  W
enumeration  X
enumeration  *

element CCCode
diagram
type restriction of xsd:string
properties
content  simple
facets
length  2
pattern  [A-Z]{2}

element CCExpiration
diagram
properties
content  complex
children Month Year
used by
complexType  BasicCreditCardType

element CCExpiration/Month
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
pattern  0[1-9]|1[0-2]
pattern  XX

element CCExpiration/Year
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
pattern  [0-9][0-9]
pattern  XX

element CCNumber
diagram
type restriction of xsd:string
properties
content  simple
used by
element  Authentication/CreditCard
facets
minLength  1

element ClassOfService
diagram
type COSType
properties
content  simple
facets
minLength  1
maxLength  1
pattern  [A-Z]

element Code
diagram
type xsd:string
properties
content  simple
used by
element  Error

element CurrencyCode
diagram
type restriction of CurrencyCodeType
properties
content  complex
used by
elements  BaggagePolicy FiledIn
facets
pattern  [A-Z0-9]{3}
attributes
Name   Type   Use   Default   Fixed
NumberOfDecimals xsd:integer required

attribute CurrencyCode/@NumberOfDecimals
type xsd:integer
properties
isRef  0
use  required

element Error
diagram
properties
content  complex
children Code Text UnderlyingError
used by
element  InfoGroup
attributes
Name   Type   Use   Default   Fixed
ErrorType xsd:string required
Source
SourceRef

attribute Error/@ErrorType
type xsd:string
properties
isRef  0
use  required

element ExtendedPayment
diagram
type extension of xsd:string
properties
content  complex
attributes
Name   Type   Use   Default   Fixed
NumberOfMonths xsd:positiveInteger
Code xsd:string

attribute ExtendedPayment/@NumberOfMonths
type xsd:positiveInteger
properties
isRef  0

attribute ExtendedPayment/@Code
type xsd:string
properties
isRef  0

element FareRefKey
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1

element FiledIn
diagram
properties
content  complex
children CurrencyCode Amount
used by
complexType  BaseFareType

element FiledIn/Amount
diagram
type xsd:integer
properties
isRef  0
content  simple

element FlightNumber
diagram
type FlightNumberWithSuffixType
properties
content  complex
facets
minInclusive  0
maxInclusive  9999
attributes
Name   Type   Use   Default   Fixed
Suffix derived by: xsd:string optional

element ForInfo
diagram
properties
content  complex
children Text
used by
element  InfoGroup
attributes
Name   Type   Use   Default   Fixed
Source optional
SourceRef optional

element GeoCoded
diagram
properties
content  complex
children Longitude Latitude
attributes
Name   Type   Use   Default   Fixed
Radius
DistanceUnit    K

element GivenName
diagram
type xsd:string
properties
content  simple
used by
element  Authentication

element HistoricalPricingInfo
diagram
properties
content  complex
children ReservationDateTime TicketedDateTime RecordLocator

element HistoricalPricingInfo/ReservationDateTime
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Date Time

element HistoricalPricingInfo/ReservationDateTime/Date
diagram
type Date
properties
isRef  0
content  simple

element HistoricalPricingInfo/ReservationDateTime/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element HistoricalPricingInfo/TicketedDateTime
diagram
properties
isRef  0
content  complex
children Date Time

element HistoricalPricingInfo/TicketedDateTime/Date
diagram
type Date
properties
isRef  0
content  simple

element HistoricalPricingInfo/TicketedDateTime/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element HistoricalPricingInfo/RecordLocator
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  0
content  simple

element HistoricPricingDate
diagram
properties
content  complex
children Date

element HistoricPricingDate/Date
diagram
type Date
properties
isRef  0
content  simple

element HotelRating
diagram
type extension of xsd:string
properties
content  complex
attributes
Name   Type   Use   Default   Fixed
RatingSystem derived by: xsd:string
RatingType derived by: xsd:string
RatingPersonType derived by: xsd:string

attribute HotelRating/@RatingSystem
type restriction of xsd:string
properties
isRef  0
facets
enumeration  AAA
enumeration  AMA
enumeration  C24
enumeration  CRC
enumeration  EHB
enumeration  EHS
enumeration  EHT
enumeration  GUESTS
enumeration  HBC
enumeration  HRS
enumeration  JVW
enumeration  LSR
enumeration  MIC
enumeration  MOB
enumeration  NTM
enumeration  OHG
enumeration  TPA
enumeration  UNK

attribute HotelRating/@RatingType
type restriction of xsd:string
properties
isRef  0
facets
enumeration  AVG
enumeration  UNK
enumeration  COF
enumeration  ATM
enumeration  FOR
enumeration  SOE
enumeration  HFA
enumeration  RFA
enumeration  RSI
enumeration  SAN
enumeration  CLE
enumeration  BFQ
enumeration  REQ
enumeration  WEL
enumeration  PKG
enumeration  VAL

attribute HotelRating/@RatingPersonType
type restriction of xsd:string
properties
isRef  0
facets
enumeration  AVG
enumeration  UNK
enumeration  PRI
enumeration  BUS
enumeration  GRP
enumeration  CON
enumeration  YCP
enumeration  ECP
enumeration  FSC
enumeration  FOC

element InfoGroup
diagram
properties
content  complex
children ForInfo Error BackOffice

element InfoGroup/BackOffice
diagram
type BackOfficeContainer
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed

element Latitude
diagram
type restriction of xsd:decimal
properties
content  simple
used by
element  GeoCoded
facets
minInclusive  -90
maxInclusive  90

element Longitude
diagram
type restriction of xsd:decimal
properties
content  simple
used by
element  GeoCoded
facets
minInclusive  -180
maxInclusive  180

element NegoRateCode
diagram
type restriction of xsd:string
properties
content  simple
facets
minLength  1

element NVA
diagram
type xsd:date
properties
content  simple

element NVB
diagram
type xsd:date
properties
content  simple

element OpeningInterval
diagram
properties
content  complex
attributes
Name   Type   Use   Default   Fixed
OpeningTime Time
ClosingTime Time

attribute OpeningInterval/@OpeningTime
type Time
properties
isRef  0
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

attribute OpeningInterval/@ClosingTime
type Time
properties
isRef  0
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element POI
diagram
type xsd:string
properties
content  simple

element POIDistance
diagram
type extension of xsd:decimal
properties
content  complex
attributes
Name   Type   Use   Default   Fixed
POIType derived by: xsd:string required
POIName xsd:string

attribute POIDistance/@POIType
type restriction of xsd:string
properties
isRef  0
use  required
facets
enumeration  AIRPORT
enumeration  CAR RENTAL STATION
enumeration  CINEMA
enumeration  CITY CENTER
enumeration  CITY DISTRICT
enumeration  COMPANY LOCATION
enumeration  FAIR
enumeration  HIGHWAY
enumeration  LOCATION
enumeration  PETROL STATION
enumeration  SHOPPING
enumeration  SMALL TOWN
enumeration  THEATER
enumeration  TOURIST FEATURE
enumeration  TRAIN STATION
enumeration  UNKNOWN

attribute POIDistance/@POIName
type xsd:string
properties
isRef  0

element ReferenceData
diagram
properties
content  complex
children Airport

element ReferenceData/Airport
diagram
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
Code derived by: xsd:string required
Long xsd:double required
Lat xsd:double required
Name xsd:string

attribute ReferenceData/Airport/@Code
type restriction of xsd:string
properties
isRef  0
use  required
facets
length  3

attribute ReferenceData/Airport/@Long
type xsd:double
properties
isRef  0
use  required

attribute ReferenceData/Airport/@Lat
type xsd:double
properties
isRef  0
use  required

attribute ReferenceData/Airport/@Name
type xsd:string
properties
isRef  0

element ReservationsDateTime
diagram
properties
content  complex
children Date Time

element ReservationsDateTime/Date
diagram
type Date
properties
isRef  0
content  simple

element ReservationsDateTime/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element SecurityID
diagram
type restriction of xsd:string
properties
content  simple
used by
element  CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard
facets
pattern  \d{3,4}

element SegmentIDRef
diagram
type xsd:string
properties
content  simple
used by
complexTypes  RailServiceAvailabilityRestrictionType RailServiceType

element ServiceDate
diagram
type xsd:date
properties
content  simple

element ServiceLocation
diagram
type restriction of xsd:string
properties
content  simple
facets
length  3

element ServicePrice
diagram
properties
content  complex
children BasePrice Taxes
attributes
Name   Type   Use   Default   Fixed
Total xsd:integer required

attribute ServicePrice/@Total
type xsd:integer
properties
isRef  0
use  required

element ServicePrice/BasePrice
diagram
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute ServicePrice/BasePrice/@Amount
type xsd:integer
properties
isRef  0
use  required

element ServicePrice/Taxes
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Tax
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute ServicePrice/Taxes/@Amount
type xsd:integer
properties
isRef  0
use  required

element ServicePrice/Taxes/Tax
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
children Designator Description
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute ServicePrice/Taxes/Tax/@Amount
type xsd:integer
properties
isRef  0
use  required

element ServicePrice/Taxes/Tax/Designator
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element ServicePrice/Taxes/Tax/Description
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element SSRCode
diagram
type xsd:string
properties
content  simple
used by
element  BookingInstructions

element StationCode
diagram
type restriction of xsd:string
properties
content  simple

element Surname
diagram
type xsd:string
properties
content  simple
used by
element  Authentication

element Text
diagram
type xsd:string
properties
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType

element TravelerIDRef
diagram
type xsd:string
properties
content  simple

element UnderlyingError
diagram
properties
content  complex
children Text
used by
element  Error
attributes
Name   Type   Use   Default   Fixed
Code xsd:string

attribute UnderlyingError/@Code
type xsd:string
properties
isRef  0

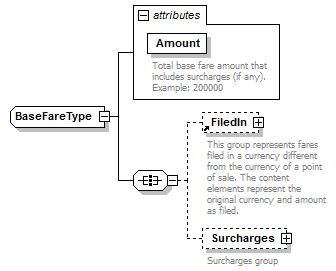

complexType BaseFareType
diagram
children FiledIn Surcharges
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute BaseFareType/@Amount
type xsd:integer
properties
isRef  0
use  required

element BaseFareType/Surcharges
diagram
type SurchargesType
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children Surcharge
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

complexType BasicCreditCardType
diagram
children CCCode CCNumber CCExpiration
used by
element  CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard

element BasicCreditCardType/CCCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  2
pattern  [A-Z0-9]{2}

element BasicCreditCardType/CCNumber
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
used by
element  Authentication/CreditCard
facets
minLength  1

complexType BasicEndorsement
diagram
children Text

element BasicEndorsement/Text
diagram
type FreeFormTextField
properties
isRef  0
content  simple
used by
elements  BaggagePolicy BookingInstructions Error ForInfo UnderlyingError
complexType  RailServiceAvailabilityRestrictionType
facets
minLength  1

complexType CarDeliverToCollectFromType
diagram
children Address Date Time Comment Telephone

element CarDeliverToCollectFromType/Address
diagram
properties
isRef  0
content  complex
children Name Street City PostalCode CountryCode

element CarDeliverToCollectFromType/Address/Name
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element CarDeliverToCollectFromType/Address/Street
diagram
type xsd:string
properties
isRef  0
content  simple

element CarDeliverToCollectFromType/Address/City
diagram
type xsd:string
properties
isRef  0
content  simple

element CarDeliverToCollectFromType/Address/PostalCode
diagram
type xsd:string
properties
isRef  0
content  simple

element CarDeliverToCollectFromType/Address/CountryCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  2
maxLength  2

element CarDeliverToCollectFromType/Date
diagram
type xsd:date
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element CarDeliverToCollectFromType/Time
diagram
type Time
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

element CarDeliverToCollectFromType/Comment
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element CarDeliverToCollectFromType/Telephone
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
maxLength  20

complexType CarHotelSupplementalInformationType
diagram
children BookingSource CorporateRateOverride CorporateDiscountNumber PaymentGuarantee FrequentGuest FrequentFlyer AdditionalInformation

element CarHotelSupplementalInformationType/CorporateRateOverride
diagram
type xsd:integer
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

element CarHotelSupplementalInformationType/CorporateDiscountNumber
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/PaymentGuarantee
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
children CreditCard Other
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string optional   G

attribute CarHotelSupplementalInformationType/PaymentGuarantee/@Type
type restriction of xsd:string
properties
isRef  0
default  G
use  optional
facets
enumeration  G
enumeration  D
enumeration  P

element CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard
diagram
type extension of BasicCreditCardType
properties
isRef  0
content  complex
children CCCode CCNumber CCExpiration SecurityID CardholderFirstName CardholderLastName ExtraData
attributes
Name   Type   Use   Default   Fixed
CardType derived by: xsd:string

attribute CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/@CardType
type restriction of xsd:string
properties
isRef  0
facets
enumeration  1
enumeration  2
enumeration  3

element CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/CardholderFirstName
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/CardholderLastName
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/ExtraData
diagram
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
attributes
Name   Type   Use   Default   Fixed
Type xsd:string
Value xsd:string

attribute CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/ExtraData/@Type
type xsd:string
properties
isRef  0

attribute CarHotelSupplementalInformationType/PaymentGuarantee/CreditCard/ExtraData/@Value
type xsd:string
properties
isRef  0

element CarHotelSupplementalInformationType/PaymentGuarantee/Other
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/FrequentGuest
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children FGCode FGNumber

element CarHotelSupplementalInformationType/FrequentGuest/FGCode
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  2

element CarHotelSupplementalInformationType/FrequentGuest/FGNumber
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/FrequentFlyer
diagram
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
children FFCode FFNumber

element CarHotelSupplementalInformationType/FrequentFlyer/FFCode
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
length  2

element CarHotelSupplementalInformationType/FrequentFlyer/FFNumber
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element CarHotelSupplementalInformationType/AdditionalInformation
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

complexType CarLocation
diagram
children CityCode Category Number

element CarLocation/CityCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3

element CarLocation/Number
diagram
type xsd:string
properties
isRef  0
content  simple

complexType Children
diagram
children Child

element Children/Child
diagram
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
children Age ExtraBed

element Children/Child/Age
diagram
type restriction of xsd:int
properties
isRef  0
content  simple
facets
minInclusive  0
maxInclusive  17

element Children/Child/ExtraBed
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
enumeration  Y
enumeration  N

complexType ClassOfServiceWithCabinType
diagram
type extension of COSType
properties
base  COSType
facets
minLength  1
maxLength  1
pattern  [A-Z]
attributes
Name   Type   Use   Default   Fixed
Cabin CabinType optional

attribute ClassOfServiceWithCabinType/@Cabin
type CabinType
properties
isRef  0
use  optional
facets
enumeration  P
enumeration  F
enumeration  J
enumeration  C
enumeration  W
enumeration  Y

complexType CommissionType
diagram
type extension of nonNegativeDecimal
properties
base  nonNegativeDecimal
facets
minInclusive  0
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string required

attribute CommissionType/@Type
type restriction of xsd:string
properties
isRef  0
use  required
facets
minLength  1
maxLength  1
enumeration  P
enumeration  A

complexType CurrencyCodeType
diagram
type extension of xsd:string
properties
base  xsd:string
used by
element  CurrencyCode
attributes
Name   Type   Use   Default   Fixed
NumberOfDecimals xsd:integer optional

attribute CurrencyCodeType/@NumberOfDecimals
type xsd:integer
properties
isRef  0
use  optional

complexType FlightNumberWithSuffixType
diagram
type extension of FlightNumberType
properties
base  FlightNumberType
used by
element  FlightNumber
facets
minInclusive  0
maxInclusive  9999
attributes
Name   Type   Use   Default   Fixed
Suffix derived by: xsd:string optional

attribute FlightNumberWithSuffixType/@Suffix
type restriction of xsd:string
properties
isRef  0
use  optional
facets
enumeration  A
enumeration  B
enumeration  C
enumeration  D

complexType Media
diagram
type extension of MediaType
properties
base  MediaType
children Url Width Height Type Preview Description Caption

element Media/Preview
diagram
type MediaType
properties
isRef  0
minOcc  0
maxOcc  unbounded
content  complex
children Url Width Height Type

element Media/Description
diagram
type extension of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  complex
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string
Code xsd:string
Description xsd:string

attribute Media/Description/@Type
type restriction of xsd:string
properties
isRef  0
facets
enumeration  PIC

attribute Media/Description/@Code
type xsd:string
properties
isRef  0

attribute Media/Description/@Description
type xsd:string
properties
isRef  0

element Media/Caption
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

complexType MediaType
diagram
children Url Width Height Type
used by
element  Media/Preview
complexType  Media

element MediaType/Url
diagram
type xsd:string
properties
isRef  0
content  simple

element MediaType/Width
diagram
type extension of xsd:int
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
Unit MediaSizeUnitType required

attribute MediaType/Width/@Unit
type MediaSizeUnitType
properties
isRef  0
use  required
facets
enumeration  px
enumeration  mm

element MediaType/Height
diagram
type extension of xsd:int
properties
isRef  0
content  complex
attributes
Name   Type   Use   Default   Fixed
Unit MediaSizeUnitType required

attribute MediaType/Height/@Unit
type MediaSizeUnitType
properties
isRef  0
use  required
facets
enumeration  px
enumeration  mm

element MediaType/Type
diagram
type extension of MediaTypeType
properties
isRef  0
content  complex
facets
enumeration  OTA
enumeration  image
enumeration  webcam
enumeration  360
enumeration  video
enumeration  logo
enumeration  map
enumeration  gallery
attributes
Name   Type   Use   Default   Fixed
Type derived by: xsd:string
Code xsd:string
Description xsd:string

attribute MediaType/Type/@Type
type restriction of xsd:string
properties
isRef  0
facets
enumeration  CTT
enumeration  PIC

attribute MediaType/Type/@Code
type xsd:string
properties
isRef  0

attribute MediaType/Type/@Description
type xsd:string
properties
isRef  0

complexType RequestForCarLocation
diagram
children CityCode Category Number

element RequestForCarLocation/CityCode
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
length  3

element RequestForCarLocation/Number
diagram
type xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple

complexType SurchargesType
diagram
children Surcharge
used by
element  BaseFareType/Surcharges
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute SurchargesType/@Amount
type xsd:integer
properties
isRef  0
use  required

element SurchargesType/Surcharge
diagram
type SurchargeType
properties
isRef  0
minOcc  1
maxOcc  unbounded
content  complex
children Designator Description
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required
Segment xsd:integer

complexType SurchargeType
diagram
type extension of SurchargeTypeBasic
properties
base  SurchargeTypeBasic
children Designator Description
used by
element  SurchargesType/Surcharge
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required
Segment xsd:integer

attribute SurchargeType/@Segment
type xsd:integer
properties
isRef  0

complexType SurchargeTypeBasic
diagram
children Designator Description
used by
complexType  SurchargeType
attributes
Name   Type   Use   Default   Fixed
Amount xsd:integer required

attribute SurchargeTypeBasic/@Amount
type xsd:integer
properties
isRef  0
use  required

element SurchargeTypeBasic/Designator
diagram
type restriction of xsd:string
properties
isRef  0
content  simple
facets
minLength  1

element SurchargeTypeBasic/Description
diagram
type restriction of xsd:string
properties
isRef  0
minOcc  0
maxOcc  1
content  simple
facets
minLength  1

simpleType CabinType
type restriction of xsd:string
used by
attribute  ClassOfServiceWithCabinType/@Cabin
facets
enumeration  P
enumeration  F
enumeration  J
enumeration  C
enumeration  W
enumeration  Y

simpleType COSType
type restriction of xsd:string
used by
element  ClassOfService
complexType  ClassOfServiceWithCabinType
facets
minLength  1
maxLength  1
pattern  [A-Z]

simpleType CountryCodeAlpha2
type restriction of xsd:string
facets
pattern  [A-Z]{2}

simpleType Date
type xsd:date
used by
elements  HistoricalPricingInfo/ReservationDateTime/Date HistoricalPricingInfo/TicketedDateTime/Date ReservationsDateTime/Date HistoricPricingDate/Date AltTicketingDate/Date
attributes  Authentication/Hotel/@CheckInDate Authentication/Hotel/@CheckOutDate

simpleType FlightNumberType
type restriction of xsd:integer
used by
complexType  FlightNumberWithSuffixType
facets
minInclusive  0
maxInclusive  9999

simpleType FreeFormTextField
type restriction of xsd:string
used by
element  BasicEndorsement/Text
facets
minLength  1

simpleType Lang
type restriction of xsd:string
used by
element  DeliverValueDocumentRQ/ValueDocumentLanguage
facets
length  2
pattern  [a-z][a-z]

simpleType MediaSizeUnitType
type restriction of xsd:string
used by
attributes  MediaType/Width/@Unit MediaType/Height/@Unit
facets
enumeration  px
enumeration  mm

simpleType MediaTypeType
type restriction of xsd:string
used by
element  MediaType/Type
facets
enumeration  OTA
enumeration  image
enumeration  webcam
enumeration  360
enumeration  video
enumeration  logo
enumeration  map
enumeration  gallery

simpleType nonNegativeDecimal
type restriction of xsd:decimal
used by
complexType  CommissionType
facets
minInclusive  0

simpleType PNRRecordLocator
type restriction of xsd:string
facets
length  6
pattern  [A-Z0-9]{6}

simpleType positiveDecimal
type restriction of xsd:decimal
facets
minExclusive  0

simpleType positiveIntegerOrEmpty
type restriction of xsd:string
facets
pattern  [1-9][0-9]*|

simpleType stringLength4
type restriction of xsd:string
facets
length  4

simpleType Time
type restriction of xsd:string
used by
elements  HistoricalPricingInfo/ReservationDateTime/Time HistoricalPricingInfo/TicketedDateTime/Time ReservationsDateTime/Time CarDeliverToCollectFromType/Time
attributes  OpeningInterval/@ClosingTime OpeningInterval/@OpeningTime
facets
length  5
pattern  ([0-1][0-9]|2[0-3]):[0-5][0-9]

simpleType TimeDurationHoursMinutes
type restriction of xsd:string
used by
attribute  RailTransferToFromSegmentType/@Time
facets
pattern  [0-9][0-9]:[0-5][0-9]

simpleType ValidEmailAddressType
type restriction of xsd:token
used by
element  DeliverValueDocumentRQ/EmailAddress/Email
facets
pattern  [a-zA-Z0-9!#$%&'*+/=?^_`{|}~\-]+(\.[a-zA-Z0-9!#$%&'*+/=?^_`{|}~\-]+)*@([0-9A-Za-z][0-9A-Za-z\-]*[0-9A-Za-z]\.)+[a-zA-Z]{2,4}

simpleType YNBoolean
type restriction of xsd:string
facets
enumeration  N
enumeration  Y

complexType BackOfficeContainer
diagram
type extension of xsd:anyType
properties
base  xs:anyType
used by
element  InfoGroup/BackOffice
attributes
Name   Type   Use   Default   Fixed


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
